MDR1300

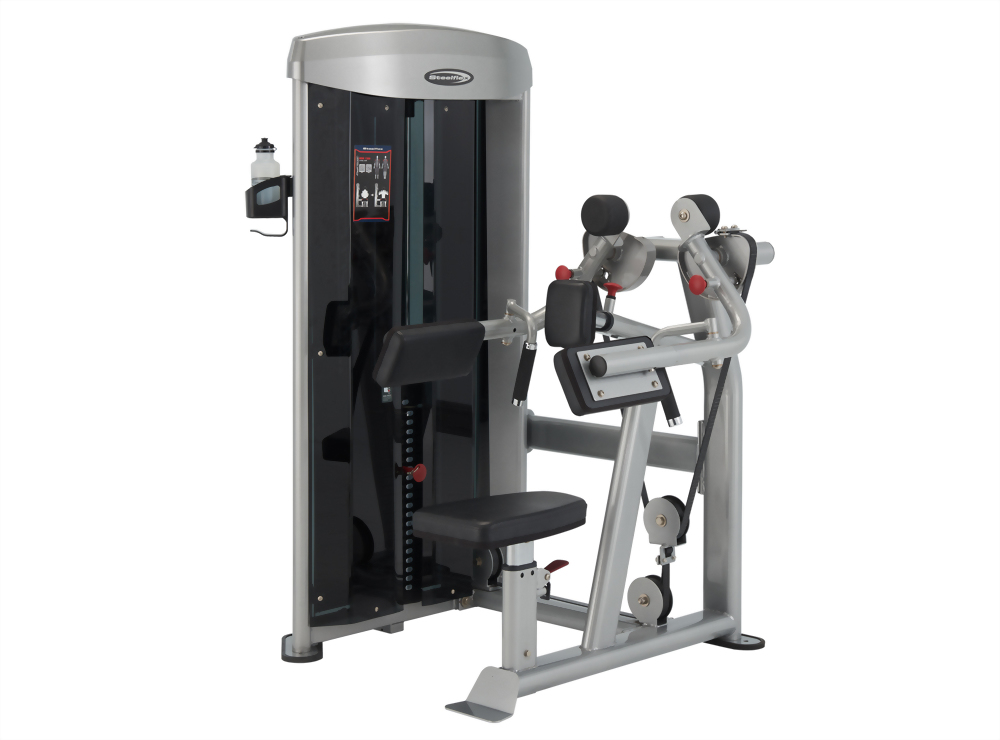

Lateral Raise
  • Built to deliver strength—and deliver it does.
  • Structurally and biomechanically designed for intensive club use, the Lateral Raise’ rigid body structure plays a critical role in the machine’s superb handling.
  • Its large base frame aids stability and comfort, and yields a neutral weight distribution. Substantial rear and side subframes help eliminate lateral torsion and vibration.


1. Mainframe:11 Gauge 1.968"  × 5.905 " (50 × 150 × 3T) Steel Oval Tubing.

2. Frame Finish:Two coat power process, eletrostatically applied powder coat finish, gray silver

3. Instructional Placard:Included

4. Upholstery:2" Rebonded Scrap Foam + 15mm High Resilience Foam with CGPC PVC cold latex and durable double sitiched upholstery

5. Handgrips:Dipped PVC Handle

6. Driving System:Flat belt

7. Flat Belt:Tensile strength of more than 5027lbs. (2280 kg)

8. Shroud:4T acrylic delicate safety cover

9. Weight Stack:High-quality weight plates for smooth and durable operation (noise reduction-absorbing cushions included)

10. Standard Weight Stack:215 lbs. / 97.5 kg ( SWS-10 lbs. × 20 pcs + 15 lbs. top plate)

11. Optional Weight:315 lbs. (143 kg) /  415 lbs. (189 kg)

12. Max User Weight:264 lbs. / 120 kg

13. Product Weight:562 lbs. / 225 kg

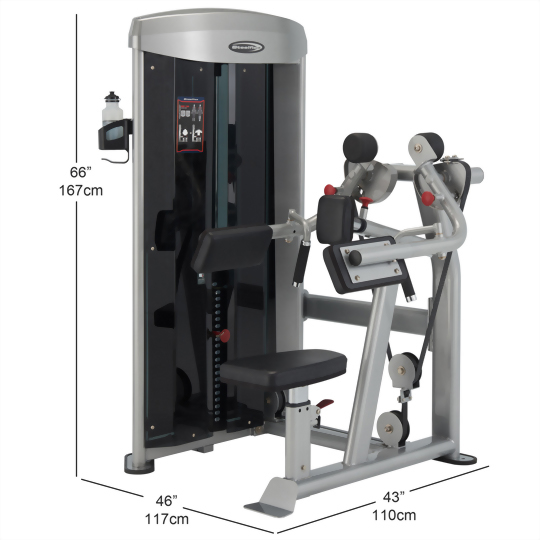

14. Dimensions:110 × 117 × 167 cm / 43" × 46" × 66"
