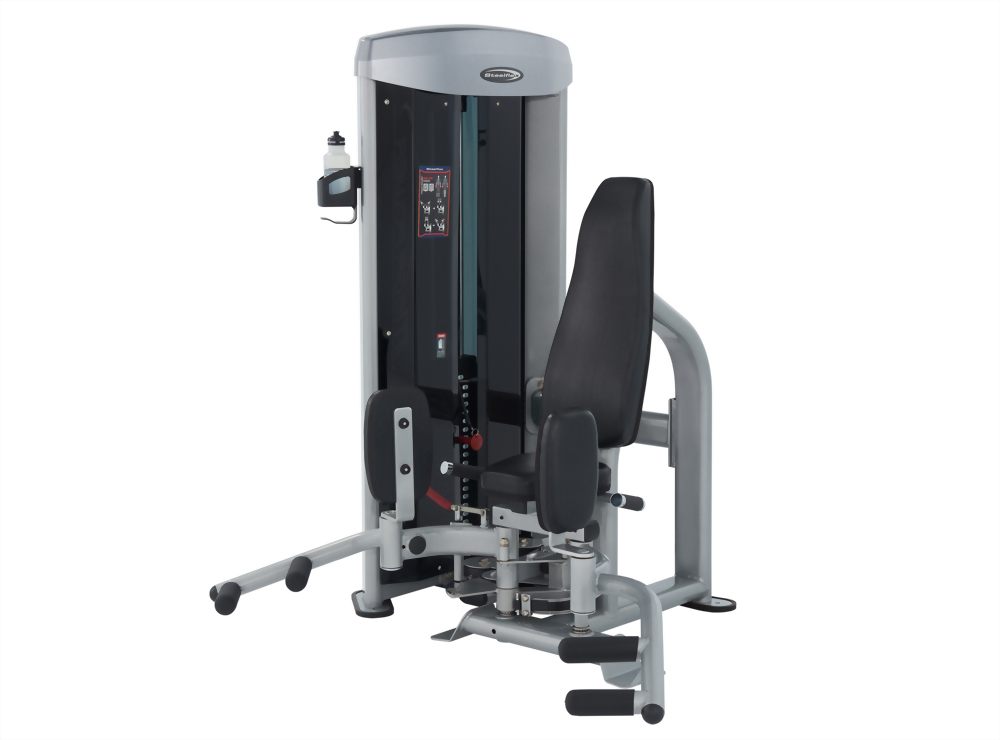

MTH1100

Outer / Inner Thigh

Built to deliver strength—and deliver it does.

Structurally and biomechanically designed for intensive club use, the Inner & Outer Thigh rigid body structure plays a critical role in the machine’s superb handling.

Its large base frame aids stability and comfort, and yields a neutral weight distribution.

Substantial rear and side subframes help eliminate lateral torsion and vibration.


1. Mainframe:11 Gauge 1.968"  × 5.905 " (50 × 150 × 3T) Steel Oval Tubing.

2. Frame Finish:Two coat power process, eletrostatically applied powder coat finish, gray silver

3. Instructional Placard:Included

4. Upholstery:2" Rebonded Scrap Foam + 15mm High Resilience Foam with CGPC PVC cold latex and durable double sitiched upholstery

5. Handgrips:Dipped PVC Handle

6. Driving System:Flat belt

7. Flat Belt:Tensile strength of more than 5027lbs. (2280 kg)

8. Shroud:4T acrylic delicate safety cover

9. Weight Stack:High-quality weight plates for smooth and durable operation (noise reduction-absorbing cushions included)

10. Standard Weight Stack:215 lbs. / 97.5 kg ( SWS-10 lbs. × 20 pcs + 15 lbs. top plate)

11. Optional Weight:315 lbs. (143 kg) /  415 lbs. (189 kg)

12. Max User Weight:264 lbs. / 120 kg

13. Product Weight:574 lbs. / 261 kg

14. Dimensions:171 × 113 × 166.5 cm / 67" × 44" × 65.5"
