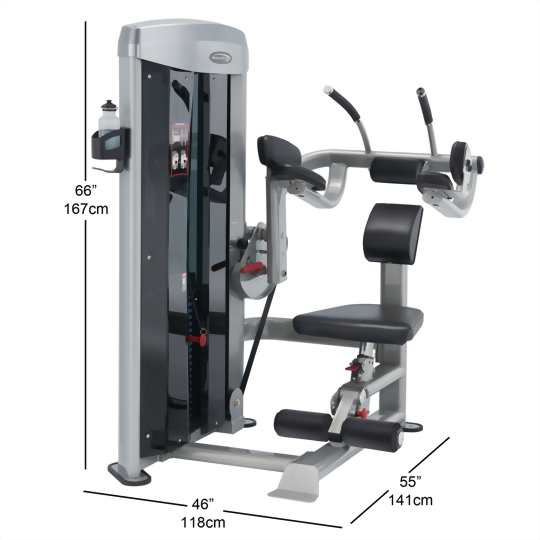

Built to deliver strength—and deliver it does.
Structurally and biomechanically designed for intensive club use, the AB Crunch’ rigid body structure plays a critical role in the machine’s superb handling.
Its large base frame aids stability and comfort, and yields a neutral weight distribution.
Substantial rear and side subframes help eliminate lateral torsion and vibrationh.
Mainframe: 11 Heavy Gauge 1.968" × 5.905" (50 × 150 × 3T) Oval Tubing.
Frame Finish: Two-coat powder process, electrostatically applied powder
coat finish, gray silver
Console: Automatic Electronic Coach (auto detecting, auto counting,
calories, etc.)
Upholstery: High density foam
Handgrips: Dipped PVC Handle
Driving
System: Flat Belt
Flat Belt: Tensile strength of more than 5027 lbs. (2280 kg)
Shroud: 4T delicate safety cover
Weight Stack: High-quality weight plates for smooth and durable operation
Standard
Weight Stack: 215 lbs. / 97.5 kg (SWS-10
lbs. × 20 pcs + 15 lbs. top plate)
Optional
Weights: 315 / 415 lbs.
Max User
Weight: 264 lbs. / 120 kg
Product
Weight: 575 lbs. / 261 kg
